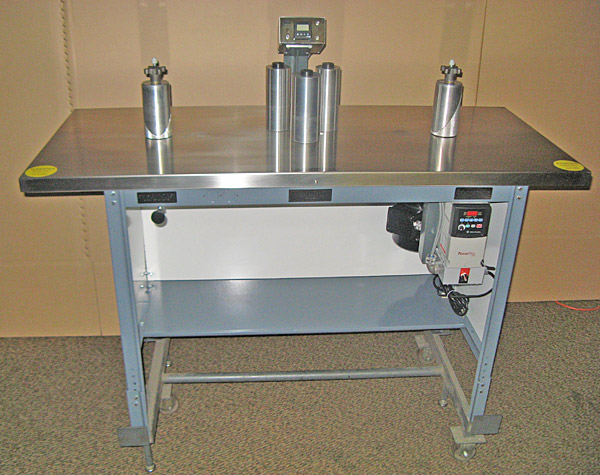

MODEL 100
|
The Model 100 is a low cost, light duty basic rewind table. It is supplied with an instruction manual, a stainless steel top, 6 digit predetermining counter, and is powered by a 1/3 HP AC motor and speed control. The Model 100 will rewind

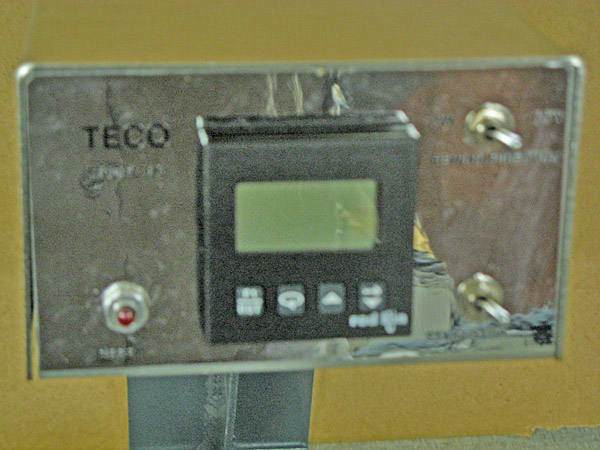

Counter/Controller |
rolls 16" unwind, 12" rewind, 6" web width, weighing up to 14 lbs. max at speeds of 400 FT/MIN. An optional foot speed control is also available (see options page). No other Teco options available for the Model 100.
|
TABLE SPECIFICATIONS |
| WEB WIDTH (MAX) |
6" |
| UNWIND ROLL (MAX) |
16" |
| REWIND ROLL (MAX) |
12" |
| ROLL WEIGHT (MAX) |
14 LBS |
| REWIND SPEED (MAX) |
400 FT/MIN |
| TENSION BRAKE |
TENSION CLAMP |
| AC MOTOR POWER |
1/3 HP - AC MOTOR |
| REWIND TORQUE |
46.4 IN/LBS |
| DECEL & STOP |
INCLUDED |
| WINDING |
CW & CCW |
| REWIND STOP TYPE |
DECELERATION & STOP |
| COUNT METHODS |
LENGTH COUNT ONLY |
| ELECTRICAL REQ. |
120 VAC STANDARD/220 VAC OPTIONAL |
| OPTIONS AVAILABLE |
FOOT CONTROL |
| TABLE SIZE |
31"H x 56"W x 24"D |
PRICE: $3,395 |
|
