MODEL 200
Counter/Controller
|

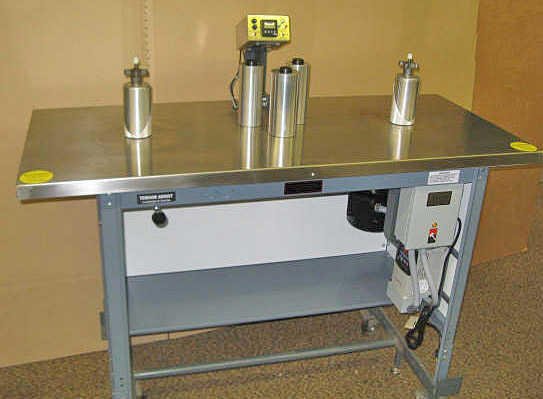

Model 200 is a medium capacity, cost conscience rewind table that will accept all of the available Teco options. The model comes complete with 6 digit 2 stage predetermining counter featuring auto slow down for a very accurate count. It is supplied with a stainless steel top, 1 HP AC motor and speed control and winds in either a CW or CCW direction. Two 3" wedge lock core holders are included along with a complete operations manual. The 200 will rewind rolls 24" unwind, 20" rewind, up to 7" web widths, weighing up to 45 lbs. max.
|
TABLE SPECIFICATIONS |
| WEB WIDTH (MAX) |
7" |
| UNWIND ROLL (MAX) |
24" |
| REWIND ROLL (MAX) |
20" |
| ROLL WEIGHT (MAX) |
45 LBS |
| REWIND SPEED (MAX) |
600 FT/MIN |
| TENSION BRAKE |
TENSION CLAMP |
| AC MOTOR POWER |
1 HP - AC MOTOR |
| REWIND TORQUE |
130.1 IN/LBS |
| DECEL & STOP |
INCLUDED |
| WINDING |
CW & CCW |
| REWIND STOP TYPE |
DECELERATION & STOP |
| COUNT METHODS |
ALL OPTIONS AVAILABLE: LENGTH, MISSING LABEL, TRANSPARENT LABEL |
| ELECTRICAL REQ. |
120 VAC STANDARD/220 VAC OPTIONAL |
| OPTIONS AVAILABLE |
ANY TECO OPTION (View Options) |
| TABLE SIZE |
31"H x 56"W x 24"D |
PRICE: $4,595 |
|
